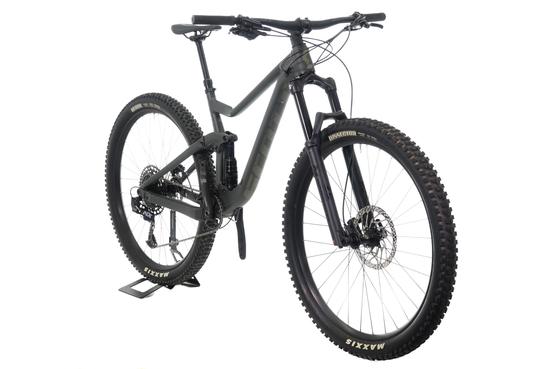

Genius 12Vxl 29" 2022

Frame

Genius Alloy SL 6011     custom butted / VLK Virtual 4 Link kinematic     27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo-BB adj.     TBC Trunnion box construction / Boost 12x148mm

Fork     Marzocchi Z2 Air Rail 3     3-Modes / 15x110mm QR axle / tapered steerer     44mm offset / Reb. Adj. / Lockout / 150mm travel

Rear Shock     X-Fusion NUDE Trunnion     SCOTT custom w. travel / geo adj.     3 modes: Lockout-Traction Control-Descend     Reb. Adj.     Travel 150-100-Lockout / 185X55mm

Remote System     SCOTT TwinLoc TSP Technology     Suspension-Seatpost Remote     below Bar / 3 modes / integ. Grip clamp

Rear Derailleur     SRAM NX Eagle 12 Speed     Shifters     SRAM SX Eagle Trigger

Crankset     SRAM X1 Eagle DUB     32T     BB-Set     SRAM DUB PF 92 MTB / shell 41x92mm

Chain     SRAM CN NX Eagle     Cassette     SRAM SX-PG1210 / 11-50 T

Brakes     Shimano MT501 Disc     Rotor     Shimano SM-RT30 CL / 203/F and 180/R

Handlebar     Syncros Hixon 2.0 / Alloy 6061D.B.     12mm rise / 9° / 780mm     Syncros Pro lock-on grips

H'stem     Syncros FL2.0 / 6061 Alloy     6° / integrated Top Cap / 31.8mm / 1 1/8"

Seatpost     Syncros Duncan Dropper Post     31.6mm / S size 100mm / M size 130mm / L & XL size 150mm

Seat     Syncros Tofino 2.5 Regular     Headset     Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8"     OD 50/62mm / ID 44/56mm

Hub (Front)     Formula CL-811 / 15x110mm     Hub (Rear)     Formula CL-148S / 12x148mm

Spokes     Stainless Black 15G / 1.8mm     Rims     Syncros X-30 / 32H / 30mm     Tubeless ready

Front Tire     Maxxis Dissector / 2.6" / 60TPI Foldable     Tubeless Ready / EXO     Rear Tire     Maxxis Rekon / 2.6" / 60TPI Foldable     Tubeless Ready / EXO

Approx weights in KG     15.00 (with tubes)     Approx weights in LBS     33.07 (with tubes)

Max. System Weight     128 kg     The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
